Make isometric drawing paper
Use three line directions as a consistent guide for angled sketches.

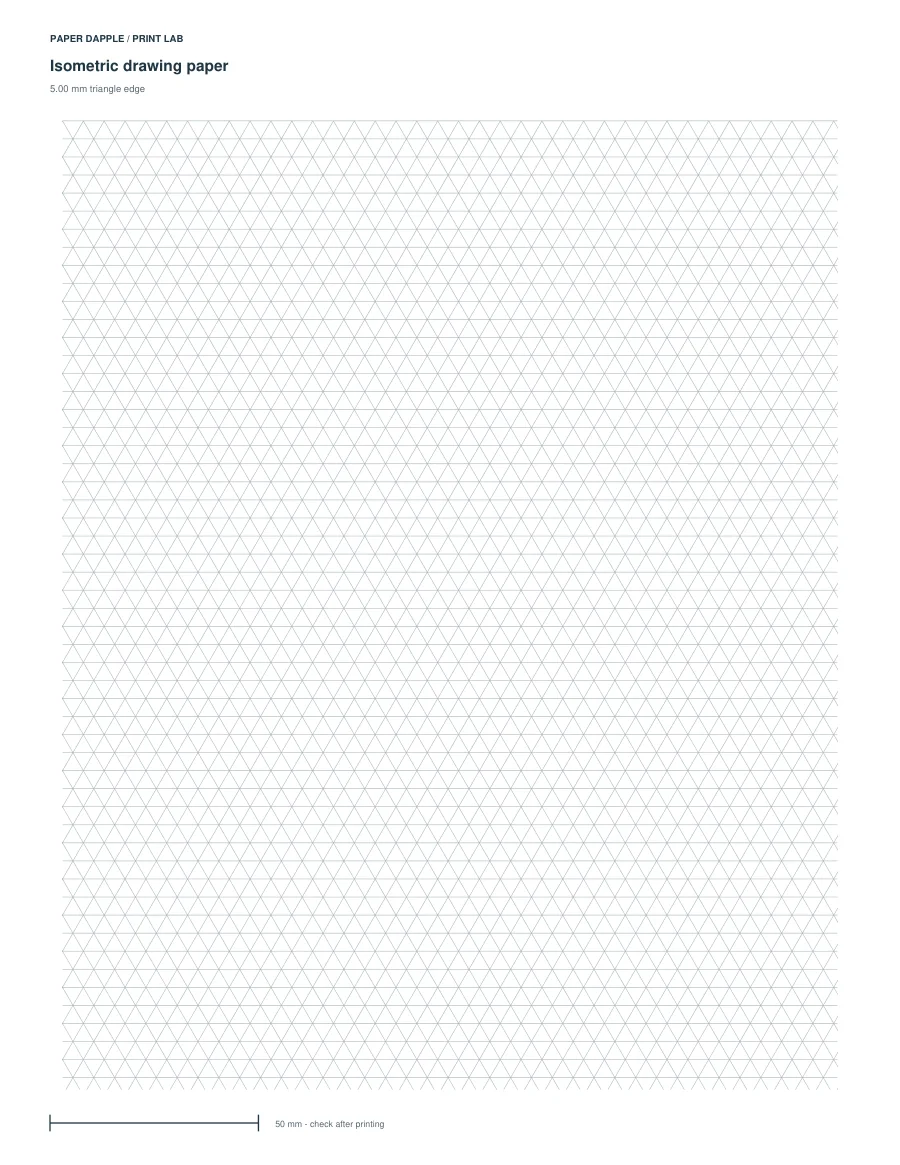

Actual generated example: isometric-5mm, LETTER. Not a screenshot of invented output.
Try a clear starting point.
The sample uses a 5 mm triangle-edge length. Horizontal rows are closer together than that edge length; those measures are not interchangeable.
Open this example in Print LabOr inspect the example PDFs
- LETTER example PDF · 1 pages
- A4 example PDF · 1 pages
The example files are fixed outputs of the shown settings. The live tool can use other supported settings; it does not modify these downloads.
What you can adjust
The spacing control is the equilateral triangle edge, 3–20 mm. Lines are clipped to the usable drawing window.
Choose Letter, A4, A5 or Half Letter and portrait or landscape. A paper profile being supported does not mean every parameter combination fits it; invalid layouts stop export.
What this tool does not promise
This is a sketch guide, not a dimensioned engineering drawing. Give any real object its own explicit dimensions.
Ready-made PDF or generator?
The ready-made resource and this generator are separate alternatives. Compare their actual outputs; matching topic names do not establish identical dimensions or page contents.
Compare Isometric drawing paper.
Before printing
Inspect every output page, including answer pages where supplied. Use actual size for measured grids or objects, and measure the reference where present. The PDF cannot select your printer settings.
