Cake-slice presentation box
An isosceles wedge-shaped tray with a 65 mm center length, a 44 mm back edge, 25 mm walls and a separately sized lid.
US Letter · 3 PDF pages · Print PDF
Go to download2 preview images · 3 PDF pages. Open the complete PDF for every page.
Preview of the actual PDF. Open complete PDF
See the page overview
READY TO PRINT
Download this printable.
- Paper
- US Letter
- Pages
- 3
- File
- Print PDF
Free · 46 KB · No account needed
Print the matching paper edition at actual size (100%). Measure the printed 50 mm line before cutting. The screen preview is not a measurement test.
See what is on each page

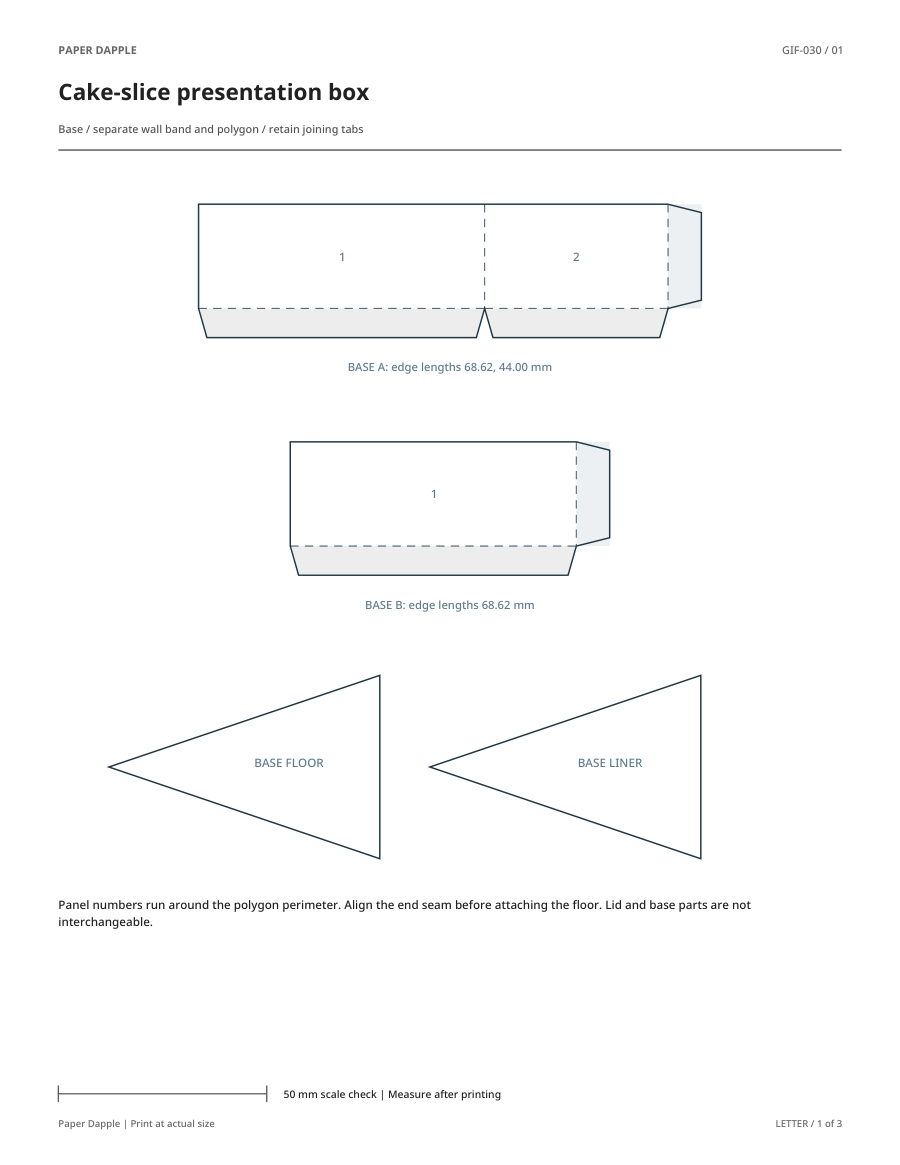

- Page 1 — BASE A wall band; BASE B wall band; BASE FLOOR; BASE LINER
- Page 2 — LID A wall band; LID B wall band; LID FLOOR; LID LINER
- Page 3 — Assembly instructions
Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.
Save or prepare these pages
Optional: Studio makes a separate page using this design family and paper size. It does not edit this PDF. Preview every sheet before exporting.
Something wrong with the print?
Check the specific problem, then return to this selected PDF.
Back to the selected file · Report a problem with this printable
Cake-slice presentation box / LETTER
A good fit for your idea?
Choose the exact edition first. Its preview, pieces, paper size and instructions belong together; no physical fit or assembly approval is implied.
Match the pointed base to its own wall pieces
The pointed end needs less material buildup than a broad corner. Keep glue thin and align the two long side panels with the sloping edges, not the center-length measurement.
The two-part bands make the pattern fit ordinary sheets without reducing the intended size. Joining those bands is part of the construction, not an optional extra piece.
Printing, file details and help
About this file
- Instruction pages
- 1
An isosceles wedge-shaped tray with a 65 mm center length, a 44 mm back edge, 25 mm walls and a separately sized lid.
From file to finished page
- Choose the paper size loaded in your printer and open the matching PDF.
- Print the matching paper edition at actual size (100%). Measure the printed 50 mm line before cutting. The screen preview is not a measurement test.
- Cut the triangular base, liner and the three-panel wall band. The two long sides are about 68.62 mm, not 65 mm; the 65 mm measurement is the center length.
- Crease the panel joints and bottom tabs. Join wall strip A to wall strip B in numbered order, then close the remaining end seam and glue the base onto the inward tabs.
- Add the inner liner over the attachment tabs. Keep the pointed end aligned and avoid accumulating excess adhesive there.
- Build the LID pieces separately. Its polygon is a parallel outward offset by 0.8 mm, and its wall band is derived from that larger polygon.
- Test the dry lid on the base. Use only separately wrapped items or decorative pieces; the paper pattern does not establish food-contact suitability.
Printing and use notes
The dimensions describe the flat pattern and fold lines, not guaranteed internal capacity.
Physical printing, fit and assembly have not been tested. Make a scrap-paper trial before using special stock.
This is a decorative or organizational paper project, not protective shipping packaging, food-contact material or a load-rated container.
Direct PDF files by design
Cake-slice presentation box (2 files)
- US Letter — print PDF · 3 pages
Page numbers and contents
- Page 1 — BASE A wall band; BASE B wall band; BASE FLOOR; BASE LINER
- Page 2 — LID A wall band; LID B wall band; LID FLOOR; LID LINER
- Page 3 — Assembly instructions
- A4 — print PDF · 3 pages
Page numbers and contents
- Page 1 — BASE A wall band; BASE B wall band; BASE FLOOR; BASE LINER
- Page 2 — LID A wall band; LID B wall band; LID FLOOR; LID LINER
- Page 3 — Assembly instructions
