Fold-flat display easel

A triangular fold-flat support with a separately attached shallow ledge for a lightweight paper card.

Previews show up to the first two pages. Download the PDF for every page listed in its contents.

Page 1 of 2

Preview of the actual PDF. Open the PDF

MAKE IT WORK FOR YOU

Your printable.

All exact editions

Choose a complete edition

Paper: US Letter
Pages: 2
Sheet: 215.9 × 279.4 mm
Format: Print PDF

Download PDF

Free · 4 KB · No account needed

Print the matching paper edition at actual size (100%). Measure the 50 mm reference line before cutting. Preview and geometry checks are not physical approval.

Pages in this PDF

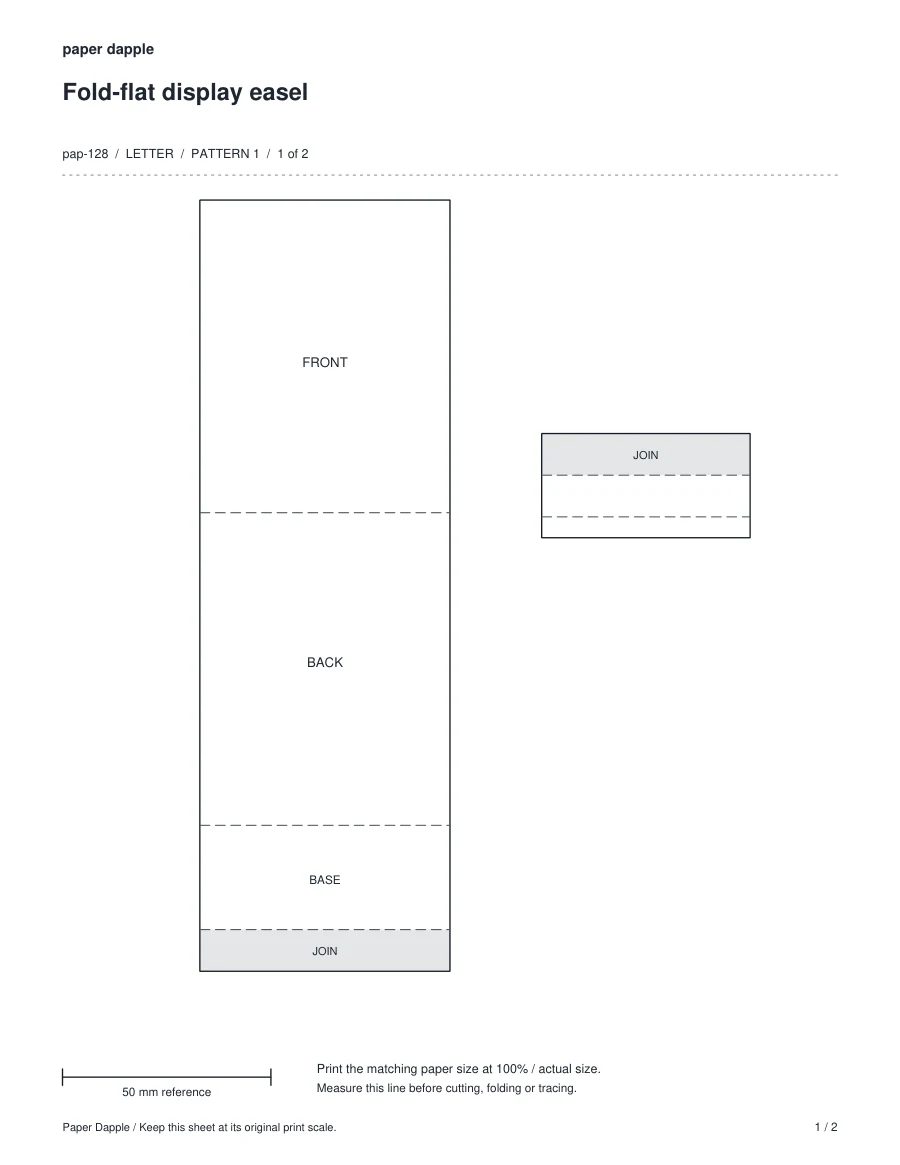

Page 1 — triangular support; front ledge
Page 2 — Assembly instructions

Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.

Add this edition to Tray

Fold-flat display easel / LETTER

A good fit for your idea?

Letter and A4 preserve the component dimensions. Choose the sheet you will print, not a different object size.

Materials and construction

Ordinary paper for a first trial; scissors; ruler; a blunt scoring tool; a small amount of paper adhesive.

Before making a batch

Check equal 75 mm sloping faces.

Test the ledge join without loading it heavily.

Record the size and weight of the actual display card.

Inside this edition

Instruction pages: 1
Orientation: Portrait

Main strip: 60 x 185 mm.

Two sloping faces: 75 mm each; base: 25 mm; joining tab: 10 mm.

Ledge strip: 50 x 25 mm; folds at 10 and 20 mm.

From file to finished page

Cut the main net and ledge. Score the three main folds and two ledge folds.
Dry-fold the main net into a narrow triangular support, with the 25 mm base on the table.
Join the 10 mm main tab behind the front face. Let the support dry square.
Fold the ledge into a shallow channel and attach its 10 mm rear section low on the front face.
Test a light scrap-paper card in the ledge. Reposition the ledge if the card tips the support.

Printing and use notes

No load rating or suitability for framed artwork or devices.
