Paper crafts

Folded diamond ornament

An eight-face equilateral-triangle net with paired seam labels for a folded diamond display ornament.

US Letter · 2 PDF pages · Print PDF

Go to download

All 2 pages available to preview

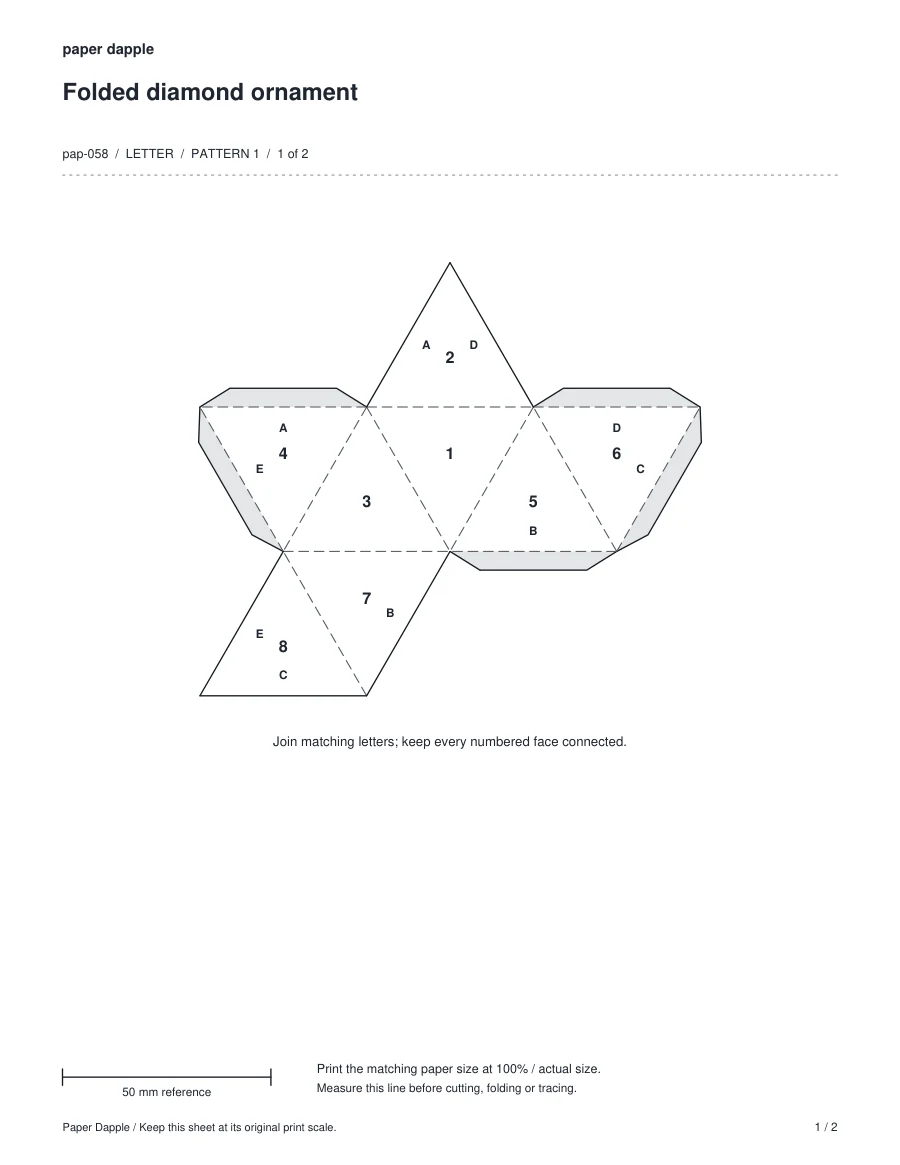

Page 1 of 2

Preview of the actual PDF. Open complete PDF

READY TO PRINT

Download this printable.

Paper: US Letter
Pages: 2
File: Print PDF

Download PDF

Other designs or file types

Complete file list

Choose a file

Free · 5 KB · No account needed

For covered files: personal, classroom, noncommercial community and your own internal business records. Resale or a product incorporating a design needs separate permission. Read full use permissions.

Print the matching paper edition at actual size (100%). Measure the 50 mm reference line before cutting. Preview and geometry checks are not physical approval.

See what is on each page

Page 1 — eight-face connected diamond net
Page 2 — Assembly instructions

Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.

Save or prepare these pages

Something wrong with the print?

Check the specific problem, then return to this selected PDF.

Back to the selected file · Report a problem with this printable

Folded diamond ornament / LETTER

A good fit for your idea?

Letter and A4 preserve the component dimensions. Choose the sheet you will print, not a different object size.

Materials and construction

Ordinary paper for a first trial; scissors; ruler; a blunt scoring tool; a small amount of paper adhesive.

Before making a batch

Measure several different face edges and the reference line.

Check every letter pair without stretching a seam.

Record any tab collision, open apex or face buckling.

Printing, file details and help

About this file

Instruction pages: 1
Orientation: Portrait

Eight equilateral faces: 40 mm edge length.

Five joining tabs: 4.5 mm nominal depth.

Nominal opposite-vertex span: about 56.57 mm before paper thickness.

From file to finished page

Cut the entire connected net, keeping all five lettered tabs. Do not separate the numbered faces.
Score every dashed face boundary and tab hinge. Fold the printed face numbers toward the inside.
Dry-fold the net so all faces meet in a diamond shape. Locate matching lettered boundary edges before adding adhesive.
Join matching edges A through D, applying adhesive only to their tabs. Let each seam set before moving to the next.
Close the remaining E seam last. Keep the model on a flat display surface until all joins have set.

Printing and use notes

Decorative paper model only; not a hanging-load or toy specification.

The unfolded geometry is checked digitally; physical assembly is still required.
