Miniature lighthouse model

Miniature lighthouse model developed as a measured original paper study. The packet provides the actual parts, joining or shaping marks, drawing dimensions and an assembly sequence. Print at actual size and dry-fit the parts before gluing.

Previews show up to the first two pages. Download the PDF for every page listed in its contents.

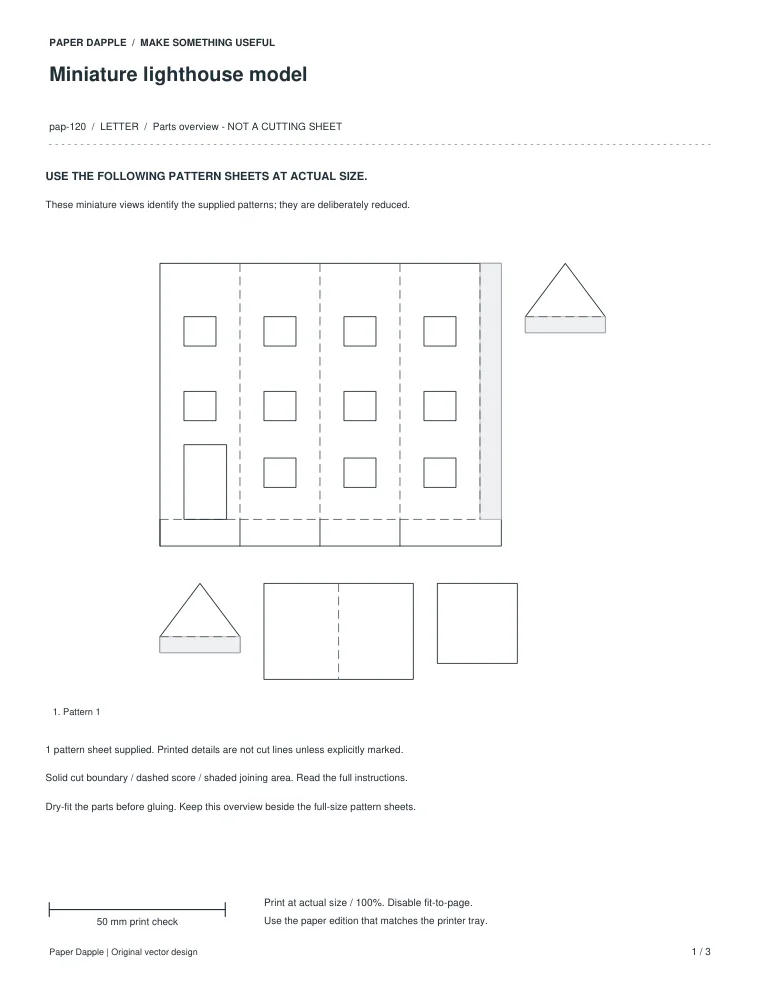

Page 1 of 3

Preview of the actual PDF. Open the PDF

MAKE IT WORK FOR YOU

Your printable.

All exact editions
Paper
US Letter
Pages
3
Sheet
215.9 × 279.4 mm
Format
Print PDF
Download PDF

Free · 8 KB · No account needed

Pages in this PDF
  • Page 1 — Assembly instructions
  • Page 2 — four walls and seam; gable triangle (2 pieces); roof with 3 mm eaves; matching floor
  • Page 3 — Assembly instructions

Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.

Add this edition to Tray

Miniature lighthouse model / LETTER

A good fit for your idea?

Letter and A4 preserve the component dimensions. Choose the sheet you will print, not a different object size.

Materials and construction

Plain 100 to 140 gsm paper for a first dimensional trial; approximately 160 to 220 gsm card only after confirming the folds. Use a ruler, suitable scissors, a blunt scoring tool and a small amount of paper adhesive. An adult should handle internal cuts, holes and small fasteners.

Before making a batch

Measure the 50 mm reference and two named component dimensions.

Make a complete empty trial and document fold direction, joining order, collision, stability and any fragile features.

Repeat the trial using your chosen paper. Check that every join holds and each moving part works freely before decorating.

Inside this edition

Instruction pages
2
Orientation
Portrait

Wall footprint 30 x 30 mm; wall height 96 mm; roof sizes are separately marked.

From file to finished page

  1. Cut the wall wrap and floor, then score the wall corners, bottom tabs and side seam.
  2. Fold the four walls into their rectangular footprint. Glue the 8 mm shaded seam behind the first wall.
  3. Fold the bottom tabs inward and glue the floor to them. Keep all corners square while the base dries.
  4. Cut both gable ends with their 6 mm joining tabs attached. Score those tab hinges and the separate roof ridge.
  5. Glue the gable tabs inside the two walls that match their widths. Center the folded roof over both gable slopes with its 3 mm eaves overhanging, and attach it with narrow scrap-paper strips underneath the roof edges.
  6. Let the model dry square. Check roof alignment and standing stability before adding lightweight decoration.
Printing and use notes

Drawing dimensions describe flat paper surfaces, not verified internal capacity, load strength, fit or material compatibility.

No mailing, food-contact, archival, toy-safety, protective-wear or cutting-machine certification is supplied.

Make a plain-paper trial first; paper thickness and fold accuracy can change the fit.

Direct PDF files for every edition
  • Miniature lighthouse model / LETTER · 3 pages
    Page numbers and contents
    • Page 1 — Assembly instructions
    • Page 2 — four walls and seam; gable triangle (2 pieces); roof with 3 mm eaves; matching floor
    • Page 3 — Assembly instructions
  • Miniature lighthouse model / A4 · 3 pages
    Page numbers and contents
    • Page 1 — Assembly instructions
    • Page 2 — four walls and seam; gable triangle (2 pieces); roof with 3 mm eaves; matching floor
    • Page 3 — Assembly instructions

Use permissions · Report a problem with this printable

KEEP THE IDEA GOING

A few more possibilities.

Explore projects

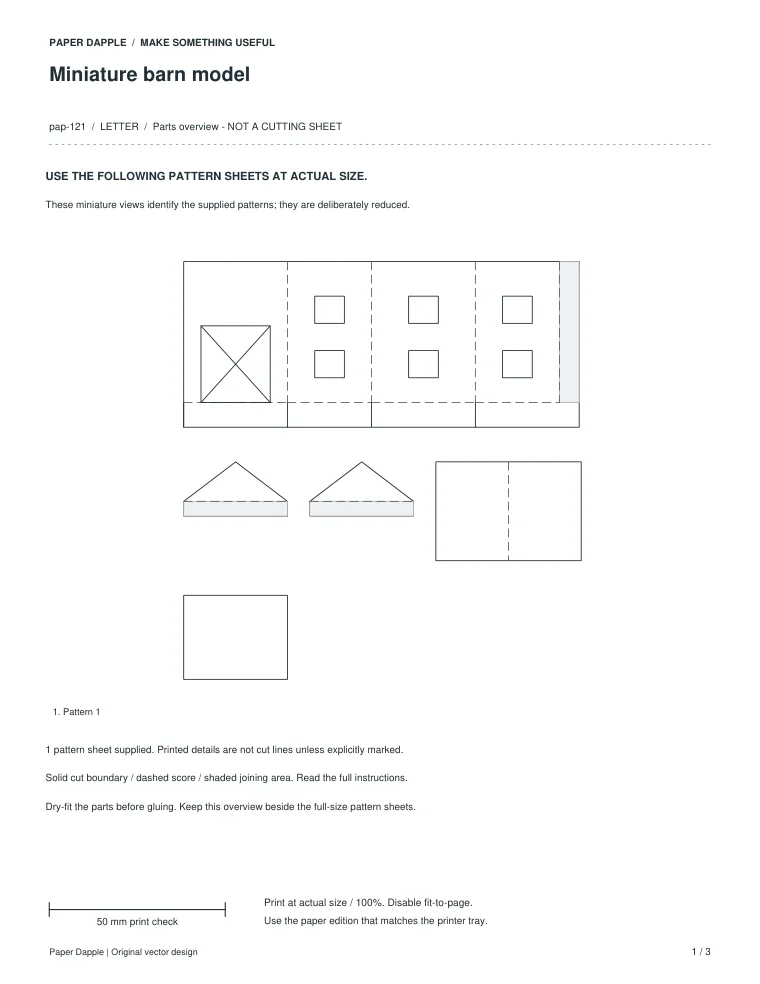

Preview of Miniature barn model
