Oval keepsake box prototype

Compare the oval body face, 74 x 50 mm, with its slightly wider separate lid; their walls have different depths.

US Letter · 4 PDF pages · Print PDF

Go to download

2 preview images · 4 PDF pages. Open the complete PDF for every page.

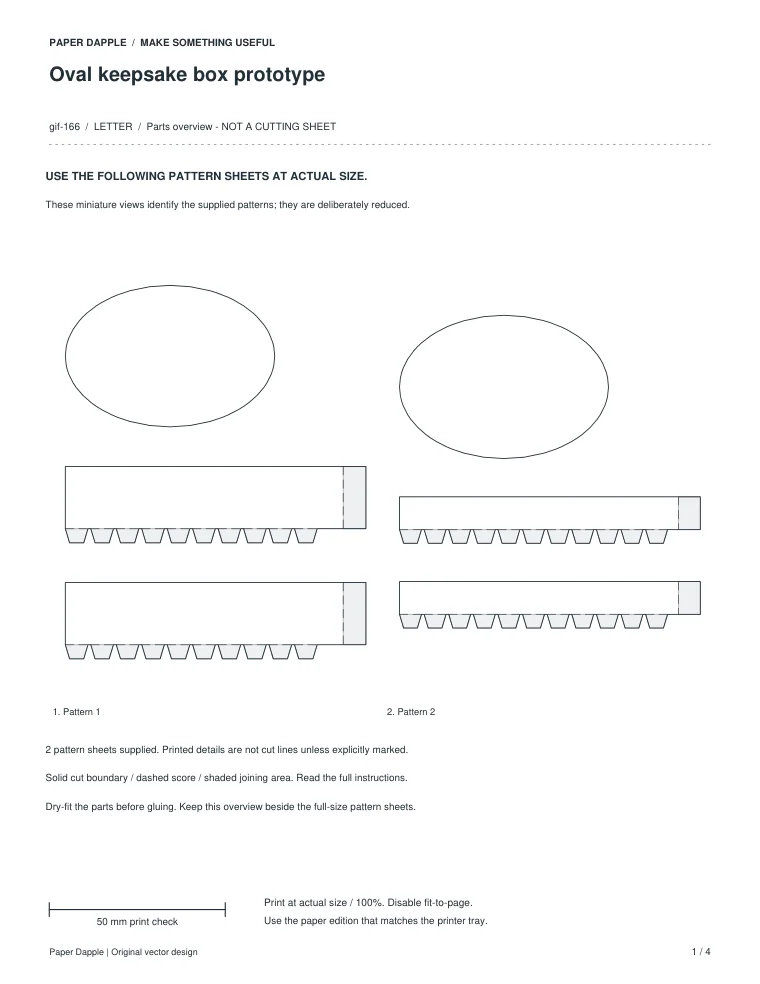

Page 1 of 2

Preview of the actual PDF. Open complete PDF

READY TO PRINT

Download this printable.

Paper
US Letter
Pages
4
File
Print PDF
Download PDF
Other designs or file types
Complete file list

Free · 14 KB · No account needed

For covered files: personal, classroom, noncommercial community and your own internal business records. Resale or a product incorporating a design needs separate permission. Read full use permissions.

See what is on each page
  • Page 1 — Assembly instructions
  • Page 2 — Body face; Body wall band (2 pieces)
  • Page 3 — Lid face; Lid wall band (2 pieces)
  • Page 4 — Assembly instructions

Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.

Save or prepare these pages

Something wrong with the print?

Check the specific problem, then return to this selected PDF.

Back to the selected file · Report a problem with this printable

Oval keepsake box prototype / LETTER

A good fit for your idea?

Letter and A4 preserve the component dimensions. Choose the sheet you will print, not a different object size.

Materials and construction

Plain paper for a first trial, a ruler, scissors and a blunt scoring tool; adult help for internal cuts.

Before making a batch

Measure the 50 mm reference and at least two named panel dimensions.

Assemble an empty plain-paper trial; record closure, seam, clearance and material behavior.

Printing, file details and help

About this file

Instruction pages
2
Orientation
Portrait

Body face: 74.00 x 50.00 mm; traced perimeter 196.47 mm; wall depth 22 mm.

Lid face: 76.39 x 52.39 mm; traced perimeter 204.00 mm; wall depth 12 mm.

From file to finished page

  1. Cut each face and numbered band with its small tabs attached. Score the tab hinges.
  2. Join each matching set of numbered bands at the 8 mm seams, in the printed order. Keep Body and Lid sets separate.
  3. Curve the wall strip smoothly around its oval face; fit the small tabs behind the face before applying adhesive.
  4. Glue the tabs to the back of the Body face. Assemble the separate larger Lid face and its shorter wall strip the same way, then let both pieces dry before fitting the lid.
  5. Check every seam and tab join on an empty trial. Do not stretch the band or force a tight lid to conceal a mismatch.
Printing and use notes

Nominal drawing dimensions are not a tested usable-capacity, load, mailing, food-contact or archival specification.

Do not place valuable, wet, hot or breakable items in an unreviewed paper prototype.

SVG downloads contain a fixed image of each PDF page. Text and shapes in the SVG are not separately editable; use the PDF for searchable text. These files are not certified cutting-machine exports.
