Paper Truss Model paper construction project
Two triangulated 160 x 48 mm sides are linked by four 28 mm spacers in this display truss.
US Letter · 4 PDF pages · Print PDF
Go to download2 preview images · 4 PDF pages. Open the complete PDF for every page.

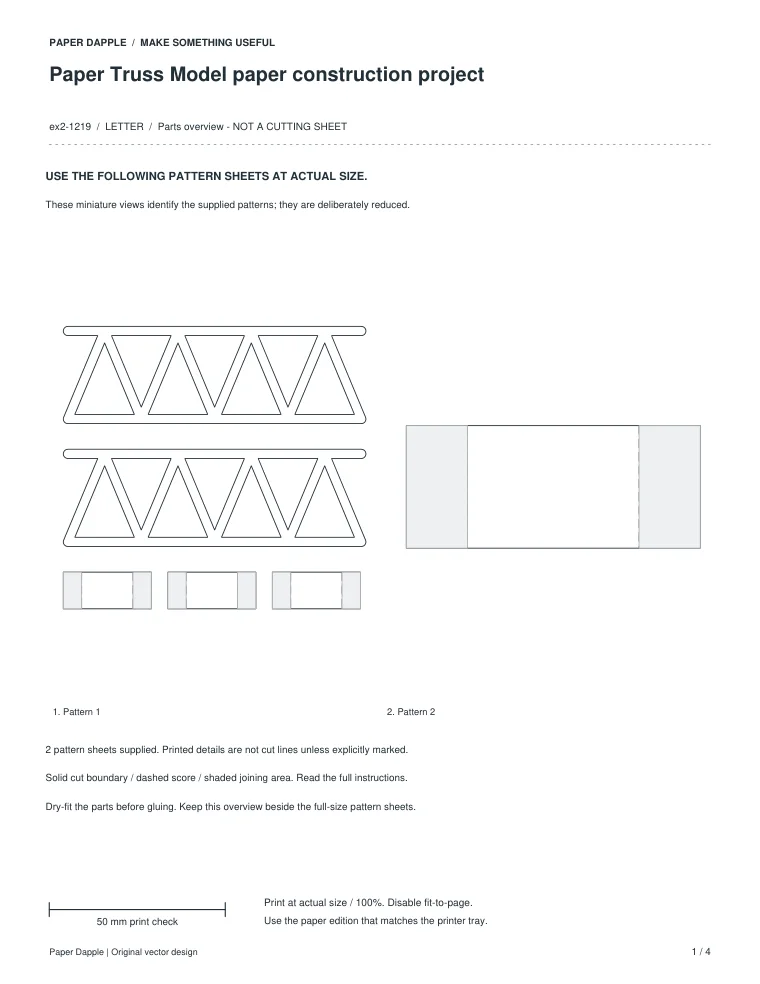

Preview of the actual PDF. Open complete PDF
See the page overview
READY TO PRINT
Download this printable.
- Paper
- US Letter
- Pages
- 4
- File
- Print PDF
Free · 16 KB · No account needed
Print the matching Letter/A4 edition at actual size (100%). Measure the 50 mm bar before cutting; trial-fit the parts with your chosen material.
See what is on each page
- Page 1 — Assembly instructions
- Page 2 — continuous triangulated truss (2 pieces); 28 mm spacer + two 10 mm tabs (3 pieces)
- Page 3 — 28 mm spacer + two 10 mm tabs
- Page 4 — Assembly instructions
Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.
Save or prepare these pages
Optional: Studio makes a separate page using this design family and paper size. It does not edit this PDF. Preview every sheet before exporting.
Something wrong with the print?
Check the specific problem, then return to this selected PDF.
Back to the selected file · Report a problem with this printable
Paper Truss Model paper construction project / LETTER
A good fit for your idea?
Letter and A4 preserve the component dimensions. Choose the sheet you will print, not a different object size.
Materials and construction
Plain 100 to 140 gsm paper for a first dimensional trial; approximately 160 to 220 gsm card only after confirming the folds. Use a ruler, suitable scissors, a blunt scoring tool and a small amount of paper adhesive. An adult should handle internal cuts, holes and small fasteners.
Before making a batch
Measure the 50 mm reference and two named component dimensions.
Make a complete empty trial and document fold direction, joining order, collision, stability and any fragile features.
Repeat the trial using your chosen paper. Check that every join holds and each moving part works freely before decorating.
Printing, file details and help
About this file
- Instruction pages
- 2
- Orientation
- Portrait
Two 160 x 48 mm triangulated sides; 5 mm members; four 28 mm live cross-spacers.
From file to finished page
- Cut two continuous truss sides, taking care not to detach a diagonal member.
- Score and bend both ends of each spacer.
- Place sides parallel, then glue spacer tabs to corresponding panel nodes. Keep the model rectangular while drying.
- This is a structural-form study, not a load-bearing bridge. Physical review may examine buckling qualitatively without promising capacity.
Printing and use notes
Drawing dimensions describe flat paper surfaces, not verified internal capacity, load strength, fit or material compatibility.
No mailing, food-contact, archival, toy-safety, protective-wear or cutting-machine certification is supplied.
Make a plain-paper trial first; paper thickness and fold accuracy can change the fit.
