Pillow box template

Make a curved-closure pillow-style paper pack from the supplied net. The curved end folds are part of the construction, so review the complete instructions before cutting.

US Letter · 2 PDF pages · Print PDF

Go to download

All 2 pages available to preview

Page 1 of 2

Preview of the actual PDF. Open complete PDF

READY TO PRINT

Download this printable.

Paper
US Letter
Pages
2
File
Print PDF
Download PDF
Other designs or file types
Complete file list

Free · 32 KB · No account needed

For covered files: personal, classroom, noncommercial community and your own internal business records. Resale or a product incorporating a design needs separate permission. Read full use permissions.

See what is on each page

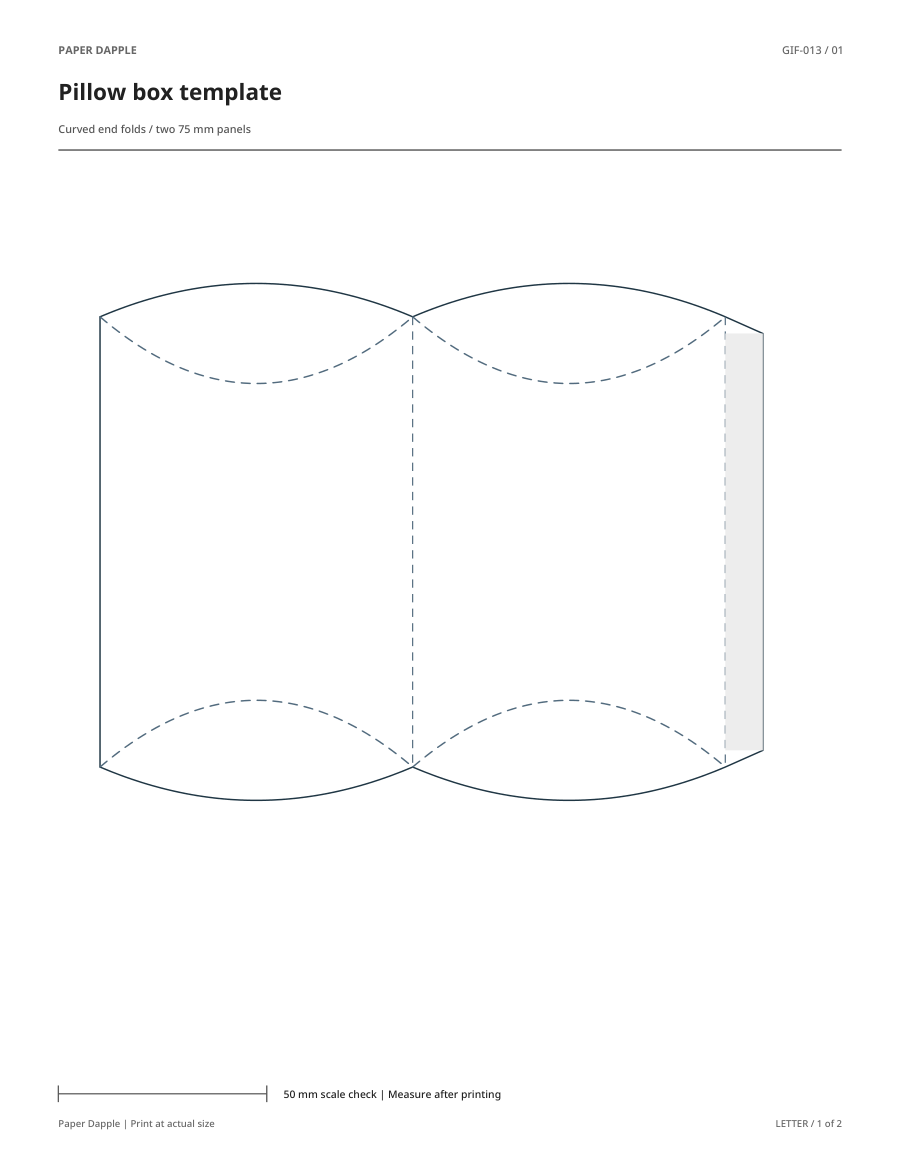

  • Page 1 — pillow net
  • Page 2 — Assembly instructions

Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.

Save or prepare these pages

Something wrong with the print?

Check the specific problem, then return to this selected PDF.

Back to the selected file · Report a problem with this printable

Pillow box template / LETTER

A good fit for your idea?

Dry-fit the actual intended contents before producing a batch; this file does not establish food-contact or shipping suitability.

Trial the closure before decorating

Use ordinary paper to understand how the curved ends tuck into shape. Stock thickness changes the way those folds meet. A stated panel dimension is not a promise of usable capacity or protection for a fragile object.

Printing, file details and help

About this file

Instruction pages
1

A curved-closure pillow pack with two 75 x 108 mm flat panels and a 9 mm side seam.

From file to finished page

  1. Choose the paper size loaded in your printer and open the matching PDF.
  2. Print at actual size (100%) on the matching paper. Measure the 50 mm reference line on a physical trial; a screen ruler is not a print check.
  3. Cut the outside contour. Lightly trace both curved dashed folds on each panel with a blunt scoring tool; do not straighten these curves.
  4. Crease the central straight panel fold and the narrow side seam. Curve the broad panels gently without creasing their centers.
  5. Join the shaded side seam behind the opposite long edge to form a flattened tube. Let the seam dry.
  6. Gently press the curved end flaps inward, one after the other. Test the opposite end in the same way; do not force thick card.
  7. Use one trial to establish the actual interior space. The printed 75 x 108 mm panel size is not a capacity or fit guarantee.
Printing and use notes

Make a scrap-paper trial before using special material or producing a batch.

Nominal fold dimensions do not establish usable interior space, fitted contents, load performance, food-contact suitability or shipping protection.

Direct PDF files by design
Pillow box template (2 files)
  • US Letter — print PDF · 2 pages
    Page numbers and contents
    • Page 1 — pillow net
    • Page 2 — Assembly instructions
  • A4 — print PDF · 2 pages
    Page numbers and contents
    • Page 1 — pillow net
    • Page 2 — Assembly instructions
