Round paper hatbox
A 56 mm diameter circular presentation box with a 28 mm wall band and a separate shallow lid.
US Letter · 3 PDF pages · Print PDF
Go to download2 preview images · 3 PDF pages. Open the complete PDF for every page.
Preview of the actual PDF. Open complete PDF
See the page overview
READY TO PRINT
Download this printable.
- Paper
- US Letter
- Pages
- 3
- File
- Print PDF
Free · 55 KB · No account needed
Print the matching paper edition at actual size (100%). Measure the printed 50 mm line before cutting. The screen preview is not a measurement test.
See what is on each page

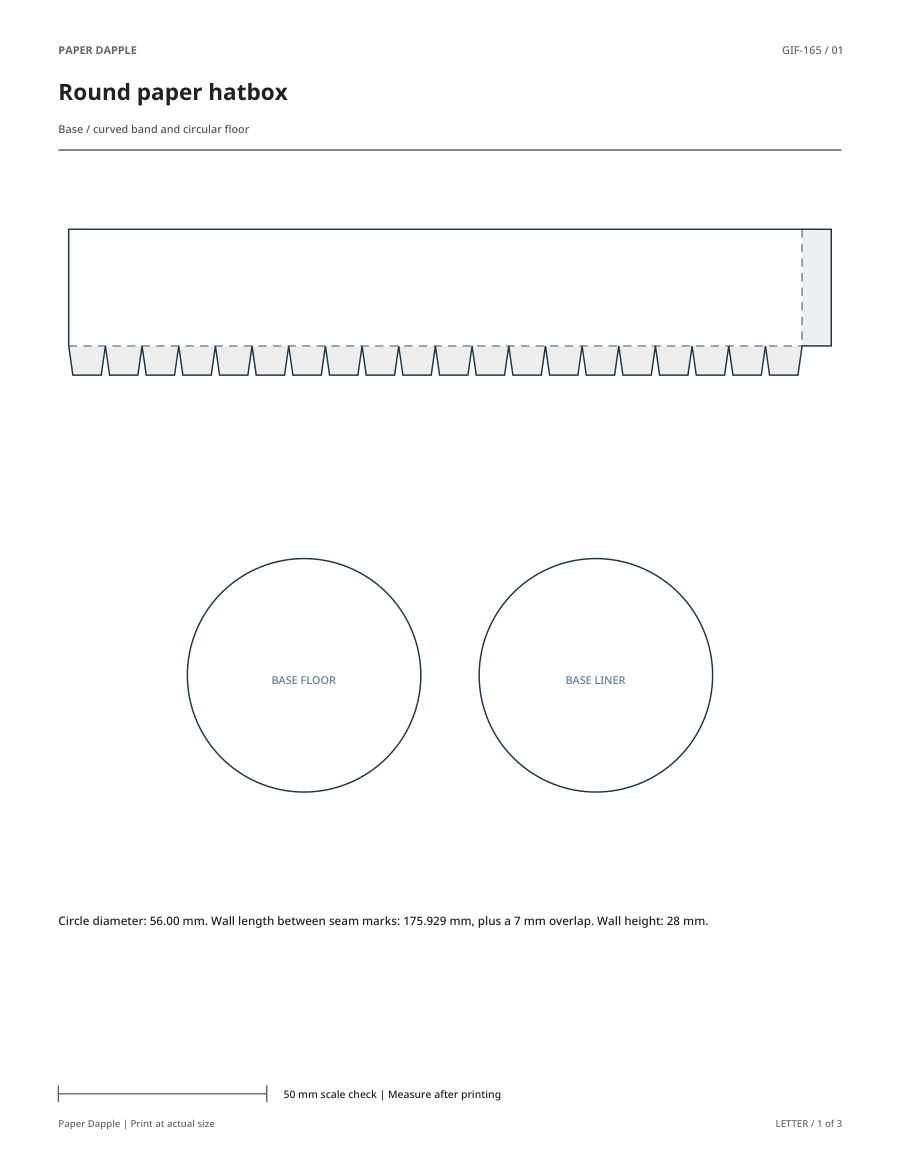

- Page 1 — BASE band; BASE FLOOR; BASE LINER
- Page 2 — LID band; LID FLOOR; LID LINER
- Page 3 — Assembly instructions
Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.
Save or prepare these pages
Optional: Studio makes a separate page using this design family and paper size. It does not edit this PDF. Preview every sheet before exporting.
Something wrong with the print?
Check the specific problem, then return to this selected PDF.
Back to the selected file · Report a problem with this printable
Round paper hatbox / LETTER
A good fit for your idea?
Choose the exact edition first. Its preview, pieces, paper size and instructions belong together; no physical fit or assembly approval is implied.
Form the curve without creasing the wall
A round wall should curve smoothly. Roll the strip gently around a cylinder before attaching the seam, then fold the segmented lower tabs inward one by one.
The lid has its own larger disk and matching wall. Do not swap the disks or cut a longer wall strip by eye; the seam marks define the intended circumference.
Printing, file details and help
About this file
- Instruction pages
- 1
A 56 mm diameter circular presentation box with a 28 mm wall band and a separate shallow lid.
From file to finished page
- Choose the paper size loaded in your printer and open the matching PDF.
- Print the matching paper edition at actual size (100%). Measure the printed 50 mm line before cutting. The screen preview is not a measurement test.
- Cut the base and liner circles, body band, lid circles and lid band. Keep all short lower attachment tabs.
- Gently curve each wall band around a clean round object before joining its seam. Keep the nominal diameter; do not stretch the printed length.
- Join the body seam at the marked overlap. Fold the lower tabs inward and attach the base circle over them, then fit the liner inside.
- Assemble the lid independently from its larger circle and band. The nominal radial allowance is 0.8 mm, for trial fitting only.
- Test the lid after both parts are completely dry. Keep the box for light decorative presentation, not crush protection or transport.
Printing and use notes
The dimensions describe the flat pattern and fold lines, not guaranteed internal capacity.
Physical printing, fit and assembly have not been tested. Make a scrap-paper trial before using special stock.
This is a decorative or organizational paper project, not protective shipping packaging, food-contact material or a load-rated container.
