Lantern-style presentation carton

Lantern-style presentation carton developed as a fixed-size paper pattern with separate cut, fold and joining marks. Use the stated drawing sizes and make an empty trial before choosing material or contents.

Previews show up to the first two pages. Download the PDF for every page listed in its contents.

Page 1 of 3

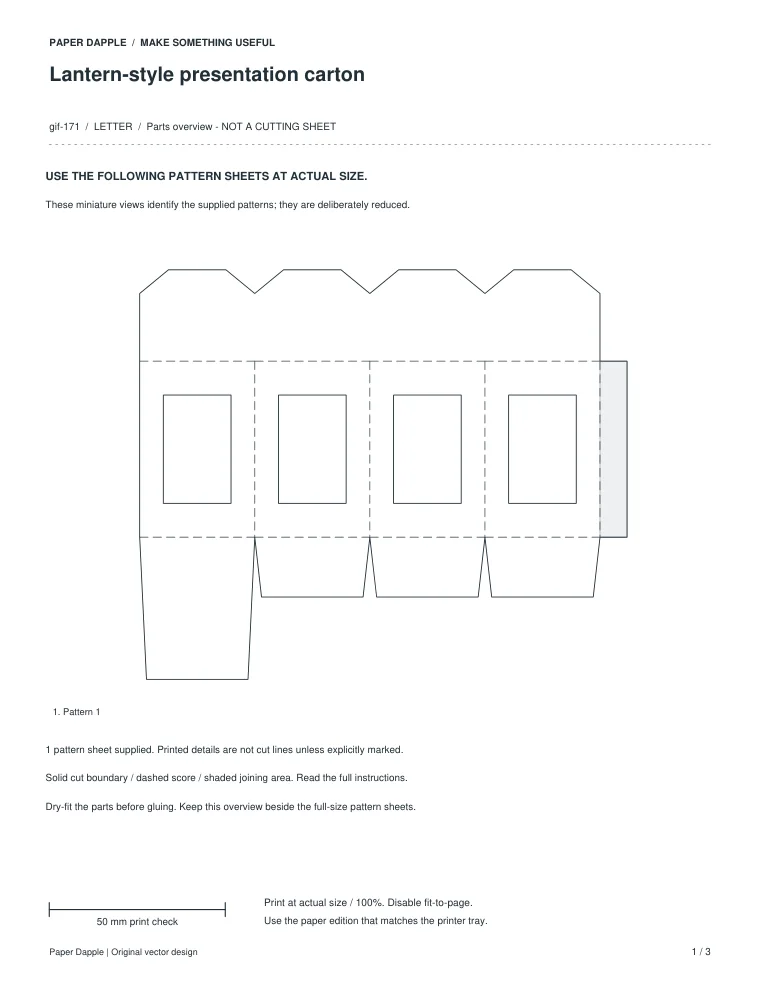

Preview of the actual PDF. Open the PDF

MAKE IT WORK FOR YOU

Your printable.

All exact editions
Paper
US Letter
Pages
3
Sheet
215.9 × 279.4 mm
Format
Print PDF
Download PDF

Free · 7 KB · No account needed

Pages in this PDF
  • Page 1 — Assembly instructions
  • Page 2 — lantern carton complete boundary
  • Page 3 — Assembly instructions

Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.

Add this edition to Tray

Lantern-style presentation carton / LETTER

A good fit for your idea?

Letter and A4 preserve the component dimensions. Choose the sheet you will print, not a different object size.

Materials and construction

Plain paper for a first trial, a ruler, scissors and a blunt scoring tool; adult help for internal cuts.

Before making a batch

Measure the 50 mm reference and at least two named panel dimensions.

Assemble an empty plain-paper trial; record closure, seam, clearance and material behavior.

Inside this edition

Instruction pages
2
Orientation
Portrait

4 wall panels, each 34 mm wide; height between main end folds 52 mm; seam flap 8 mm.

From file to finished page

  1. Cut the perimeter and score all marked panel and flap hinges. Cut out the marked window rectangles before folding.
  2. Fold the four walls into a square tube. Glue the 8 mm shaded side flap behind the first wall and keep the tube square while it dries.
  3. Fold two opposite bottom flaps inward, then fold the other pair over them. Glue the overlapping bottom areas and let the empty carton dry on a flat surface.
  4. Fold the three short top flaps inward first. Fold the long flap across the opening and tuck its plain end inside the opposite wall. Open and close the empty carton without forcing the flap.
  5. Use this as an unlit paper display. Keep flame, candles and heat sources away.
Printing and use notes

Nominal drawing dimensions are not a tested usable-capacity, load, mailing, food-contact or archival specification.

Do not place valuable, wet, hot or breakable items in an unreviewed paper prototype.

Direct PDF files for every edition

Use permissions · Report a problem with this printable

KEEP THE IDEA GOING

A few more possibilities.

Explore projects

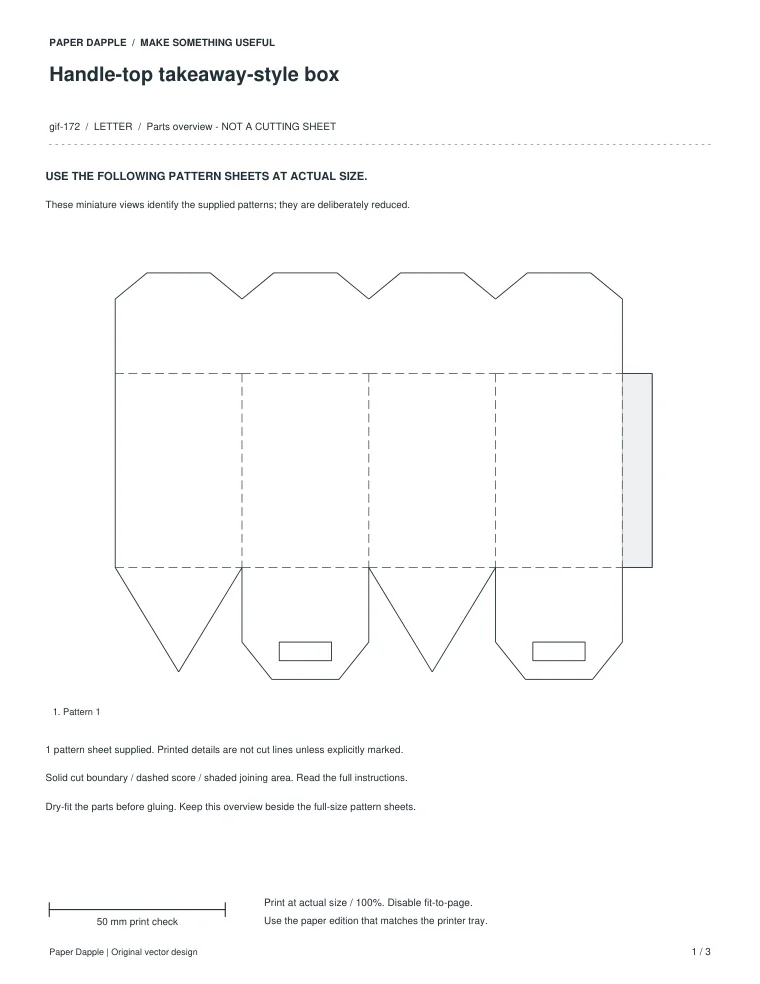

Preview of Handle-top takeaway-style box
