Paper crafts
Paper confetti cone assembly developed as a measured original paper study. The packet provides the actual parts, joining or shaping marks, drawing dimensions and an assembly sequence. Print at actual size and dry-fit the parts before gluing.
Previews show up to the first two pages. Download the PDF for every page listed in its contents.
Preview of the actual PDF. Open the PDF
MAKE IT WORK FOR YOU
Free · 8 KB · No account needed
Print the matching Letter/A4 edition at actual size (100%). Measure the 50 mm bar before cutting; trial-fit the parts with your chosen material.
Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.
Studio opens its own editable layout. Check its preview before downloading.

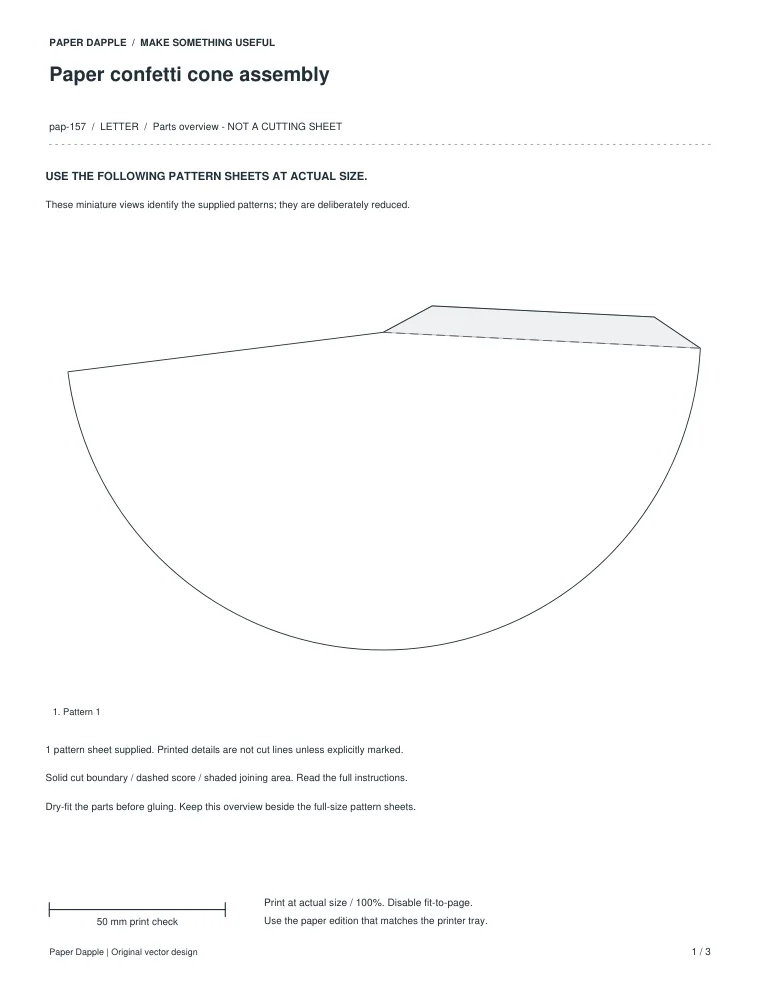

Paper confetti cone assembly / LETTER
Letter and A4 preserve the component dimensions. Choose the sheet you will print, not a different object size.
Plain 100 to 140 gsm paper for a first dimensional trial; approximately 160 to 220 gsm card only after confirming the folds. Use a ruler, suitable scissors, a blunt scoring tool and a small amount of paper adhesive. An adult should handle internal cuts, holes and small fasteners.
Measure the 50 mm reference and two named component dimensions.
Make a complete empty trial and document fold direction, joining order, collision, stability and any fragile features.
Repeat the trial using your chosen paper. Check that every join holds and each moving part works freely before decorating.
Cone sector radius: 77 mm; angle 170 degrees; joining tab 7 mm.
Ideal paper-surface cone: base diameter 72.72 mm and height 67.87 mm before material/adhesive effects.
Drawing dimensions describe flat paper surfaces, not verified internal capacity, load strength, fit or material compatibility.
No mailing, food-contact, archival, toy-safety, protective-wear or cutting-machine certification is supplied.
Make a plain-paper trial first; paper thickness and fold accuracy can change the fit.
KEEP THE IDEA GOING
Paper crafts

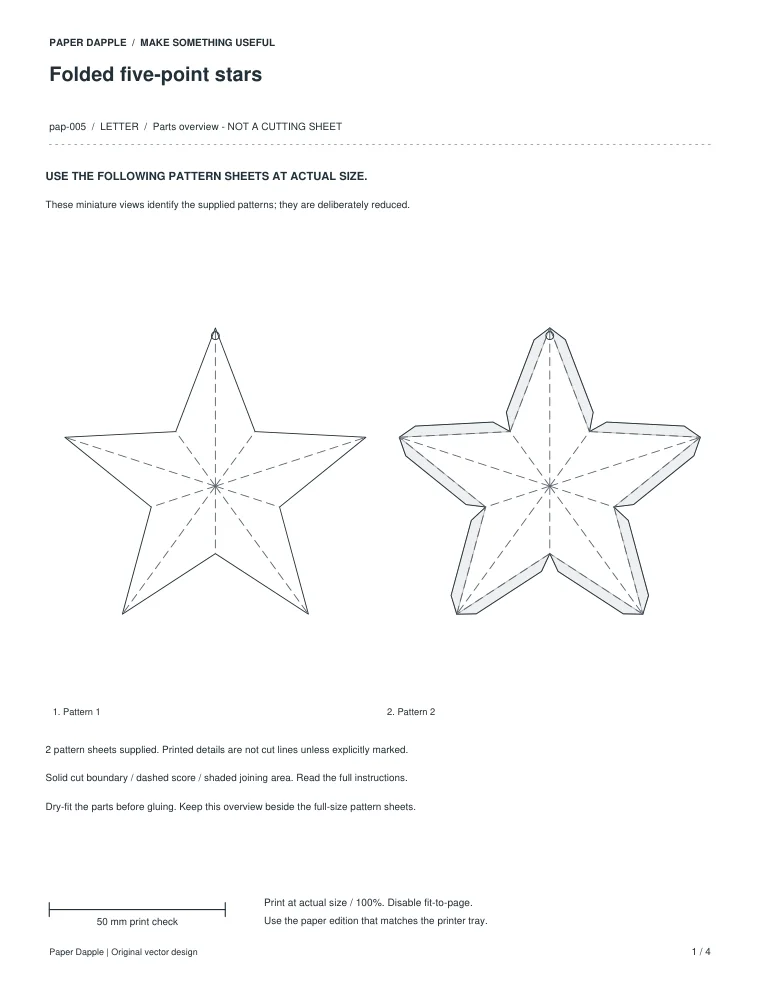

Folded five-point stars developed as a measured original paper study. The packet provides the actual parts, joining or shaping marks, drawing dimensions and an assembly sequence. Print at actual size and dry-fit the parts before gluing.
Paper crafts
Dimensional six-point stars developed as a measured original paper study. The packet provides the actual parts, joining or shaping marks, drawing dimensions and an assembly sequence. Print at actual size and dry-fit the parts before gluing.
Paper crafts

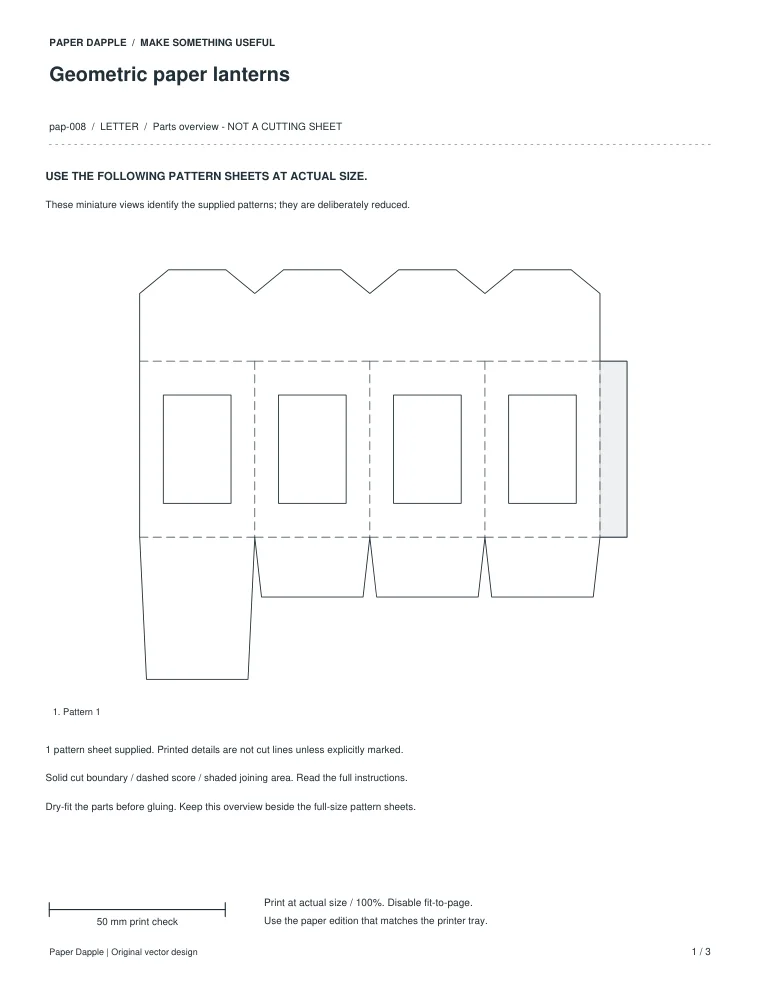

Geometric paper lanterns developed as a fixed-size paper pattern with separate cut, fold and joining marks. Use the stated drawing sizes and make an empty trial before choosing material or contents.
