Paper cone character bases
Use the 77 mm radius sector and 7 mm tab as a conical base for adding your own paper character details.
US Letter · 3 PDF pages · Print PDF
Go to download2 preview images · 3 PDF pages. Open the complete PDF for every page.

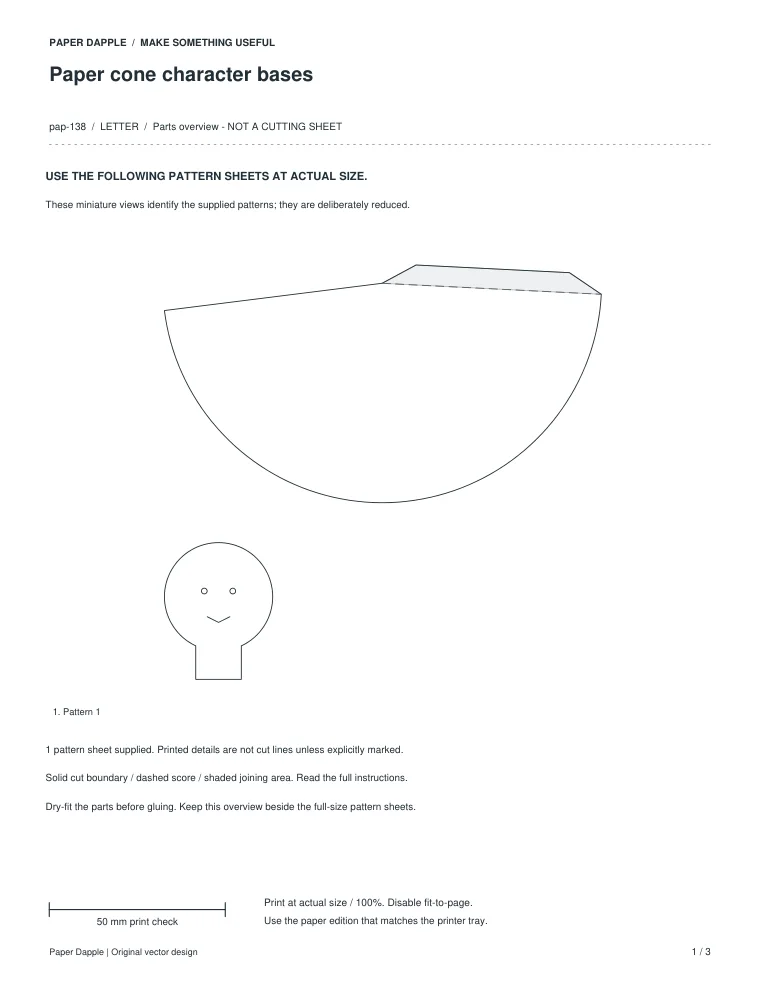

Preview of the actual PDF. Open complete PDF
See the page overview
READY TO PRINT
Download this printable.
- Paper
- US Letter
- Pages
- 3
- File
- Print PDF
Free · 13 KB · No account needed
Print the matching Letter/A4 edition at actual size (100%). Measure the 50 mm bar before cutting; trial-fit the parts with your chosen material.
See what is on each page
- Page 1 — Assembly instructions
- Page 2 — cone sector and 7 mm seam tab; head; head fixing tab
- Page 3 — Assembly instructions
Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.
Save or prepare these pages
Optional: Studio makes a separate page using this design family and paper size. It does not edit this PDF. Preview every sheet before exporting.
Something wrong with the print?
Check the specific problem, then return to this selected PDF.
Back to the selected file · Report a problem with this printable
Paper cone character bases / LETTER
A good fit for your idea?
Letter and A4 preserve the component dimensions. Choose the sheet you will print, not a different object size.
Materials and construction
Plain 100 to 140 gsm paper for a first dimensional trial; approximately 160 to 220 gsm card only after confirming the folds. Use a ruler, suitable scissors, a blunt scoring tool and a small amount of paper adhesive. An adult should handle internal cuts, holes and small fasteners.
Before making a batch
Measure the 50 mm reference and two named component dimensions.
Make a complete empty trial and document fold direction, joining order, collision, stability and any fragile features.
Repeat the trial using your chosen paper. Check that every join holds and each moving part works freely before decorating.
Printing, file details and help
About this file
- Instruction pages
- 2
- Orientation
- Portrait
Cone sector radius: 77 mm; angle 170 degrees; joining tab 7 mm.
Ideal paper-surface cone: base diameter 72.72 mm and height 67.87 mm before material/adhesive effects.
From file to finished page
- Cut the cone sector with its seam tab attached. Score the seam hinge and gently curl the sector.
- Overlap the plain radial edge onto the shaded tab, aligning the pointed end and curved rim endpoints. Glue the seam and let it dry.
- Cut the head with its lower fixing tab attached and bend the tab back. Glue the tab at the cone tip with the face upright.
Printing and use notes
Drawing dimensions describe flat paper surfaces, not verified internal capacity, load strength, fit or material compatibility.
No mailing, food-contact, archival, toy-safety, protective-wear or cutting-machine certification is supplied.
Make a plain-paper trial first; paper thickness and fold accuracy can change the fit.
