Pentagonal favor box
Five 29 mm edges give the favor box its pentagonal base, with a shallow separate cover.
US Letter · 3 PDF pages · Print PDF
Go to download2 preview images · 3 PDF pages. Open the complete PDF for every page.
Preview of the actual PDF. Open complete PDF
See the page overview
READY TO PRINT
Download this printable.
- Paper
- US Letter
- Pages
- 3
- File
- Print PDF
Free · 45 KB · No account needed
Print the matching paper edition at actual size (100%). Measure the printed 50 mm line before cutting. The screen preview is not a measurement test.
See what is on each page

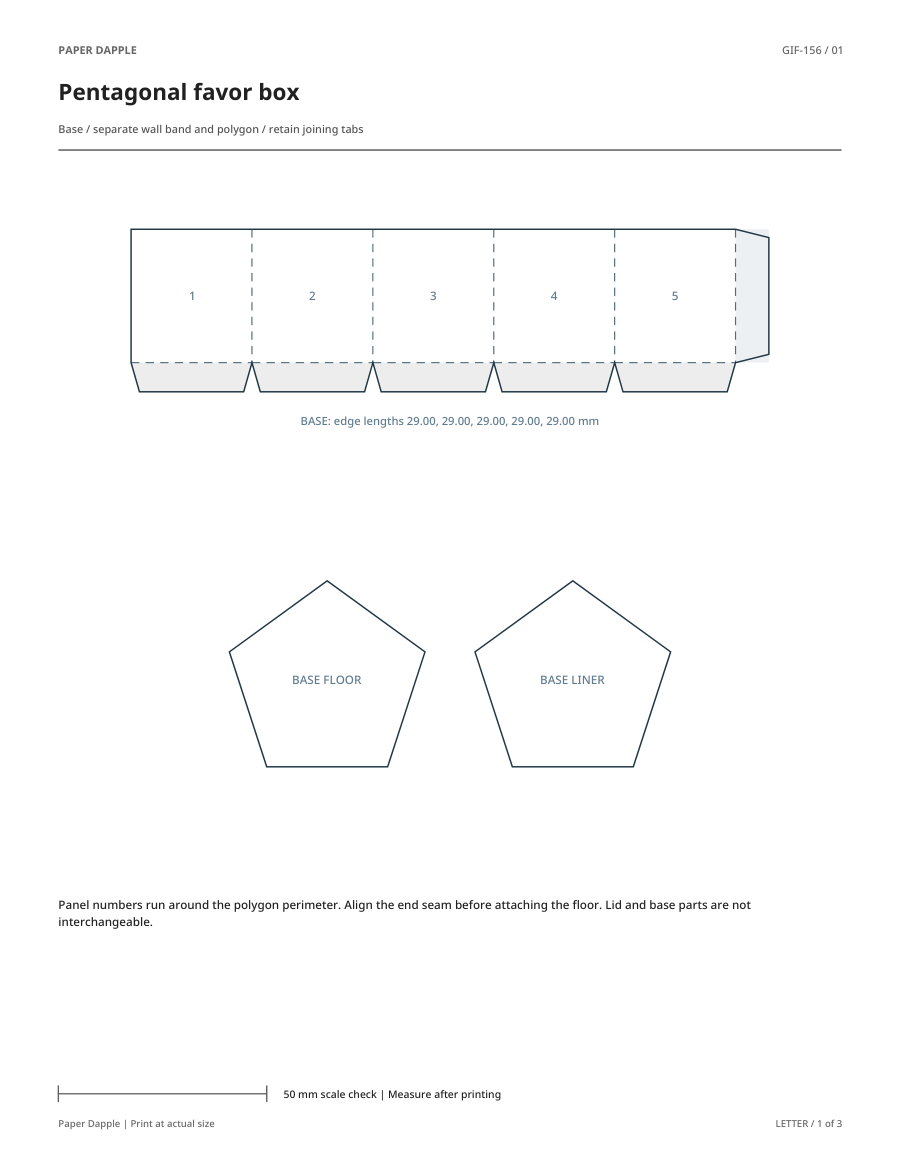

- Page 1 — BASE wall band; BASE FLOOR; BASE LINER
- Page 2 — LID wall band; LID FLOOR; LID LINER
- Page 3 — Assembly instructions
Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.
Save or prepare these pages
Optional: Studio makes a separate page using this design family and paper size. It does not edit this PDF. Preview every sheet before exporting.
Something wrong with the print?
Check the specific problem, then return to this selected PDF.
Back to the selected file · Report a problem with this printable
Pentagonal favor box / LETTER
A good fit for your idea?
Choose the exact edition first. Its preview, pieces, paper size and instructions belong together; no physical fit or assembly approval is implied.
Choose the footprint before the closure
A polygon box gives a small presentation a recognizable shape, but the edge length is not the same as the space across the center. Compare the base outline with a scrap version of the intended item before making the wall band.
The base and lid use different perimeter pieces. Keep their markings together and avoid correcting a tight lid by crushing the base corners; trial the material and revise the source dimensions instead.
Printing, file details and help
About this file
- Instruction pages
- 1
A 5-sided paper box with 29 mm side edges, 32 mm walls and a separate shallow slip-over lid.
From file to finished page
- Choose the paper size loaded in your printer and open the matching PDF.
- Print the matching paper edition at actual size (100%). Measure the printed 50 mm line before cutting. The screen preview is not a measurement test.
- Cut the 5-panel wall band and both polygon bases. Keep the marked 8 mm end tab and the 5 bottom attachment tabs.
- Crease the vertical panel hinges and bottom tabs. Close the wall band by attaching the side tab behind the first wall, keeping the fold lines aligned.
- Fold the lower tabs inward and seat the matching base polygon above them. Glue each tab underneath the base, then add the supplied inner liner disk/polygon to cover the seams.
- Build the lid from its own slightly longer band and larger polygon, with its tabs turned inward. Match only pieces marked LID.
- The lid is offset outward by 0.8 mm normal to every base edge; this is a trial allowance, not verified stock clearance. Let the adhesive set before testing the fit.
- Keep the first lid loose rather than forcing it. Record paper thickness and fold behavior before reproducing the box.
Printing and use notes
The dimensions describe the flat pattern and fold lines, not guaranteed internal capacity.
Physical printing, fit and assembly have not been tested. Make a scrap-paper trial before using special stock.
This is a decorative or organizational paper project, not protective shipping packaging, food-contact material or a load-rated container.
