Gifts & celebrations
Pyramid favor carton
A square-based pyramid carton with a 50 mm base, 54 mm face altitude, joining tabs and an optional tip closure.
US Letter · 2 PDF pages · Print PDF
Go to downloadAll 2 pages available to preview
Preview of the actual PDF. Open complete PDF
See the page overview
READY TO PRINT
Download this printable.
- Paper
- US Letter
- Pages
- 2
- File
- Print PDF
Free · 34 KB · No account needed
Print the matching paper edition at actual size (100%). Measure the printed 50 mm line before cutting. The screen preview is not a measurement test.
See what is on each page

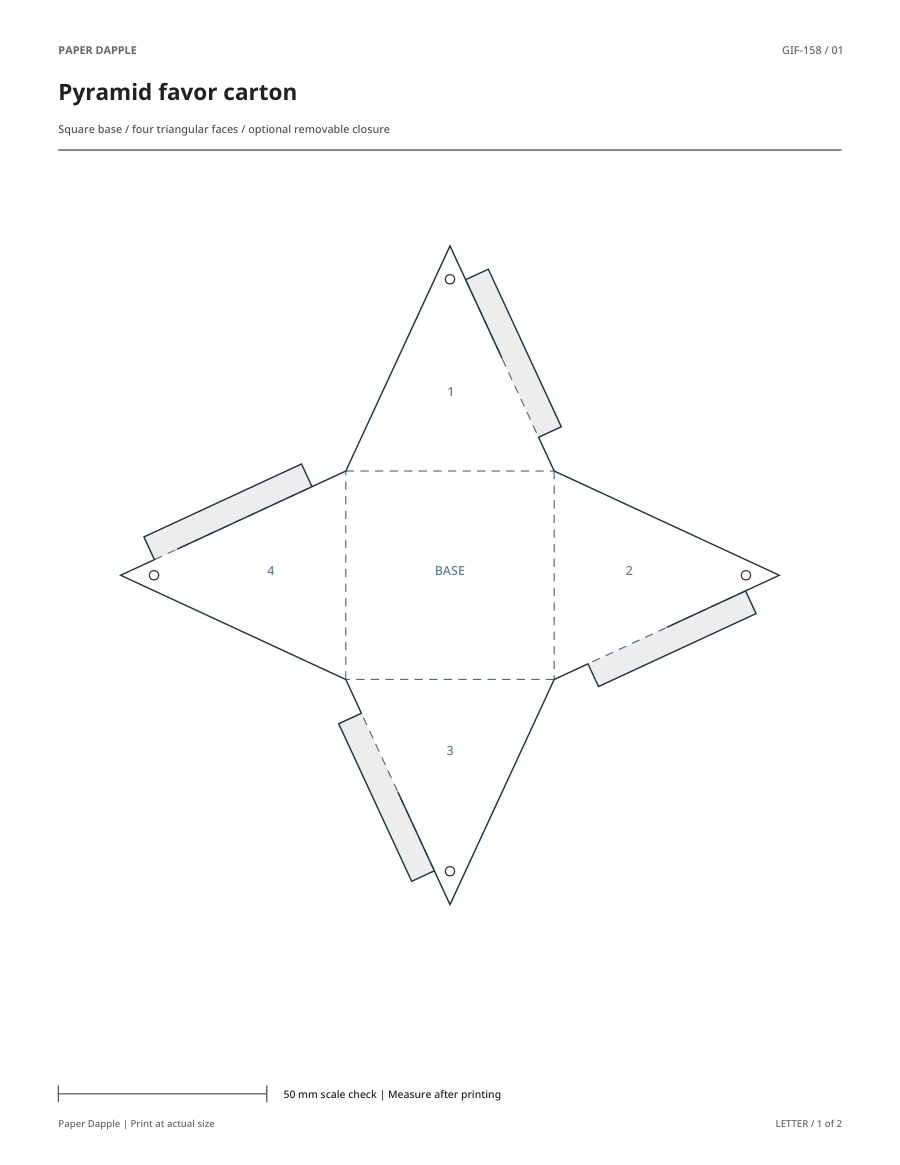

- Page 1 — pyramid net
- Page 2 — Assembly instructions
Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.
Save or prepare these pages
Optional: Studio makes a separate page using this design family and paper size. It does not edit this PDF. Preview every sheet before exporting.
Something wrong with the print?
Check the specific problem, then return to this selected PDF.
Back to the selected file · Report a problem with this printable
Pyramid favor carton / LETTER
A good fit for your idea?
Choose the exact edition first. Its preview, pieces, paper size and instructions belong together; no physical fit or assembly approval is implied.
Distinguish a face altitude from inside height
The printed triangle measurement is taken on the flat face. It does not state how tall or wide an object can be inside the folded pyramid.
Leave the last seam removable during the first trial so the fit can be checked without tearing a tab. The tip is not a supported lifting point.
Printing, file details and help
About this file
- Instruction pages
- 1
A square-based pyramid carton with a 50 mm base, 54 mm face altitude, joining tabs and an optional tip closure.
From file to finished page
- Choose the paper size loaded in your printer and open the matching PDF.
- Print the matching paper edition at actual size (100%). Measure the printed 50 mm line before cutting. The screen preview is not a measurement test.
- Cut the outer net and retain each shaded side tab. Open the small marked holes only if using a short decorative closure tie.
- Crease all four base edges and the side-tab hinges. The face altitude is measured on the flat triangle, not vertically inside the finished pyramid.
- Raise the first three triangular faces and glue their tabs behind the neighboring face. Keep the last edge unglued for initial fitting.
- Dry-close the final face so all four tips align. Close with a removable adhesive dot or a short tie; do not use the tip as a lifting handle.
- Allow the joins to set and test a lightweight wrapped item on scrap. The paper shape is not a food-contact or load-tested carton.
Printing and use notes
The dimensions describe the flat pattern and fold lines, not guaranteed internal capacity.
Physical printing, fit and assembly have not been tested. Make a scrap-paper trial before using special stock.
This is a decorative or organizational paper project, not protective shipping packaging, food-contact material or a load-rated container.
