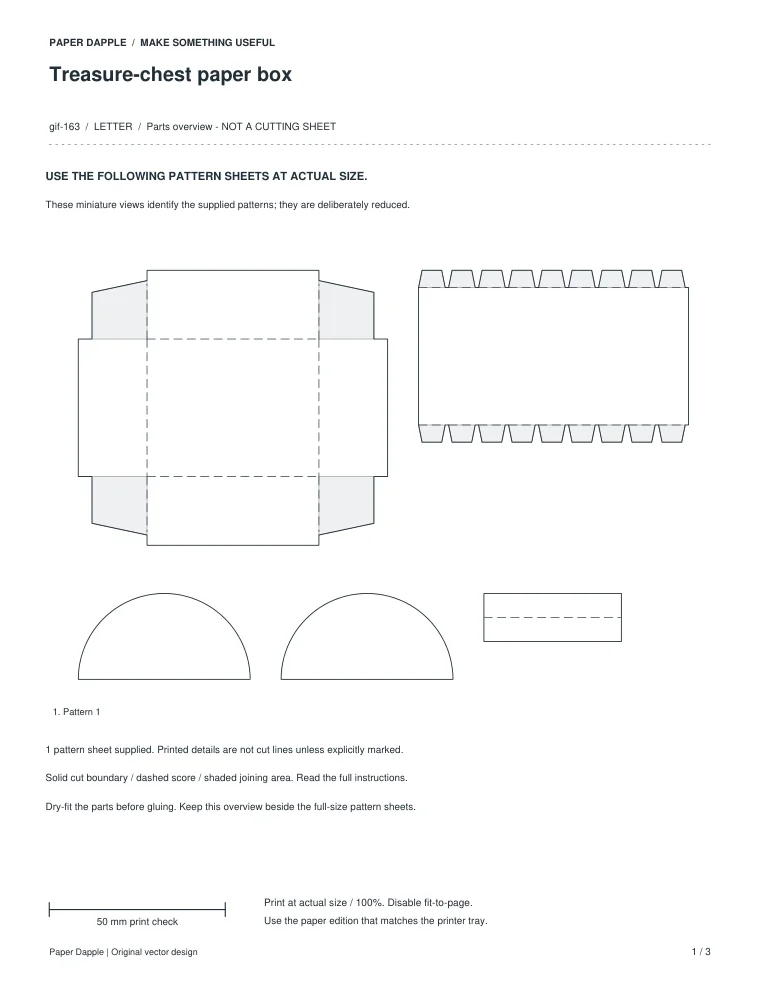

Treasure-chest paper box
Treasure-chest paper box developed as a fixed-size paper pattern with separate cut, fold and joining marks. Use the stated drawing sizes and make an empty trial before choosing material or contents.
Gifts & celebrations
Suitcase-style paper box
Suitcase-style paper box developed as a fixed-size paper pattern with separate cut, fold and joining marks. Use the stated drawing sizes and make an empty trial before choosing material or contents.
Previews show up to the first two pages. Download the PDF for every page listed in its contents.
Page 1 of 4
Preview of the actual PDF. Open the PDF
MAKE IT WORK FOR YOU
Your printable.
All exact editions
- Paper
- US Letter
- Pages
- 4
- Sheet
- 215.9 × 279.4 mm
- Format
- Print PDF
Free · 9 KB · No account needed
Print the matching Letter/A4 edition at actual size (100%). Measure the 50 mm bar before cutting; trial-fit the parts with your chosen material.
Pages in this PDF
- Page 1 — Assembly instructions
- Page 2 — Drawer base complete cut boundary; Outer sleeve blank
- Page 3 — handle strip; strap (2 pieces)
- Page 4 — Assembly instructions
Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.
Studio opens its own editable layout. Check its preview before downloading.

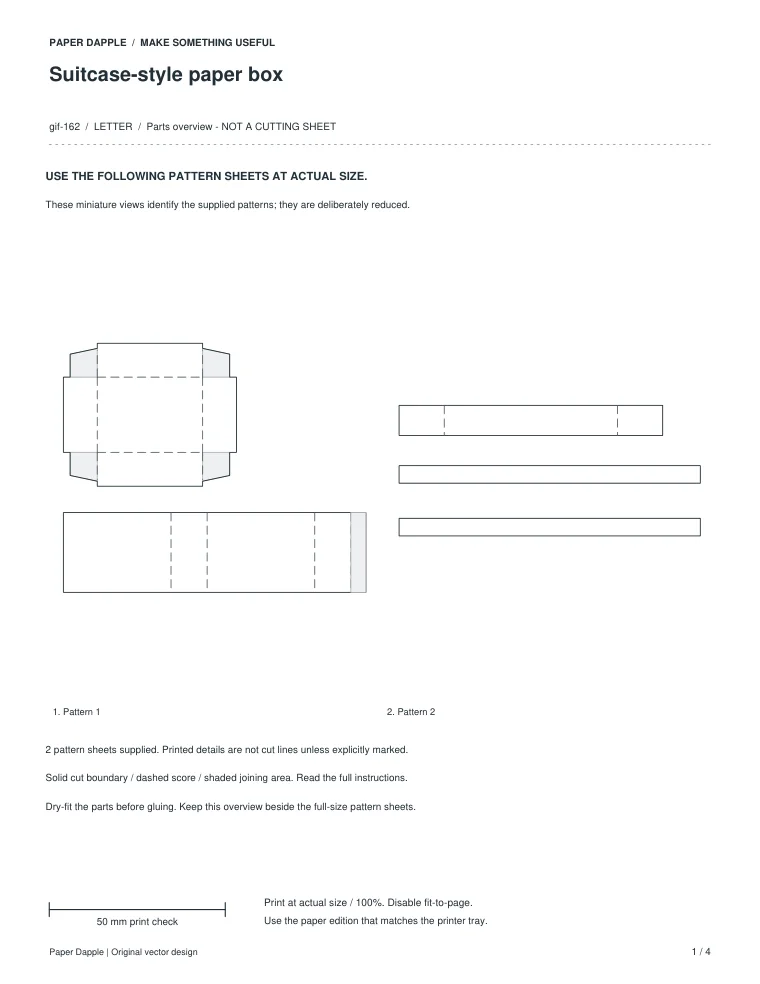

Suitcase-style paper box / LETTER
A good fit for your idea?
Letter and A4 preserve the component dimensions. Choose the sheet you will print, not a different object size.
Materials and construction
Plain paper for a first trial, a ruler, scissors and a blunt scoring tool; adult help for internal cuts.
Before making a batch
Measure the 50 mm reference and at least two named panel dimensions.
Assemble an empty plain-paper trial; record closure, seam, clearance and material behavior.
Inside this edition
- Instruction pages
- 2
- Orientation
- Portrait
Drawer panel: 56 x 40 mm with 18 mm walls.
Sleeve panel dimensions: 57.2 and 19.2 mm, depth 42.4 mm. Added nominal clearance is not a measured fit result.
From file to finished page
- Cut all supplied parts with their corner tabs attached and score the marked folds.
- Raise the base tray walls. Glue each shaded corner tab behind its adjacent wall and let the tray dry square on a flat surface.
- Fold the separate sleeve around its four panel hinges. Glue only its narrow seam tab, leaving both ends open. Let the sleeve dry before sliding the empty tray inside.
- Pre-fold the handle at its two marked end lines. Attach those short ends to the outside of the sleeve, leaving the middle arched. Fit the two decorative straps around the sleeve and fix their ends clear of the drawer opening.
- Check sliding clearance on the intended card stock. Support the model from underneath; the paper sleeve and decorations are not carrying fittings.
Printing and use notes
Nominal drawing dimensions are not a tested usable-capacity, load, mailing, food-contact or archival specification.
Do not place valuable, wet, hot or breakable items in an unreviewed paper prototype.
Direct PDF files for every edition
- Suitcase-style paper box / LETTER · 4 pages
Page numbers and contents
- Page 1 — Assembly instructions
- Page 2 — Drawer base complete cut boundary; Outer sleeve blank
- Page 3 — handle strip; strap (2 pieces)
- Page 4 — Assembly instructions
- Suitcase-style paper box / A4 · 4 pages
Page numbers and contents
- Page 1 — Assembly instructions
- Page 2 — Drawer base complete cut boundary; Outer sleeve blank
- Page 3 — handle strip; strap (2 pieces)
- Page 4 — Assembly instructions
KEEP THE IDEA GOING
A few more possibilities.
Gifts & celebrations

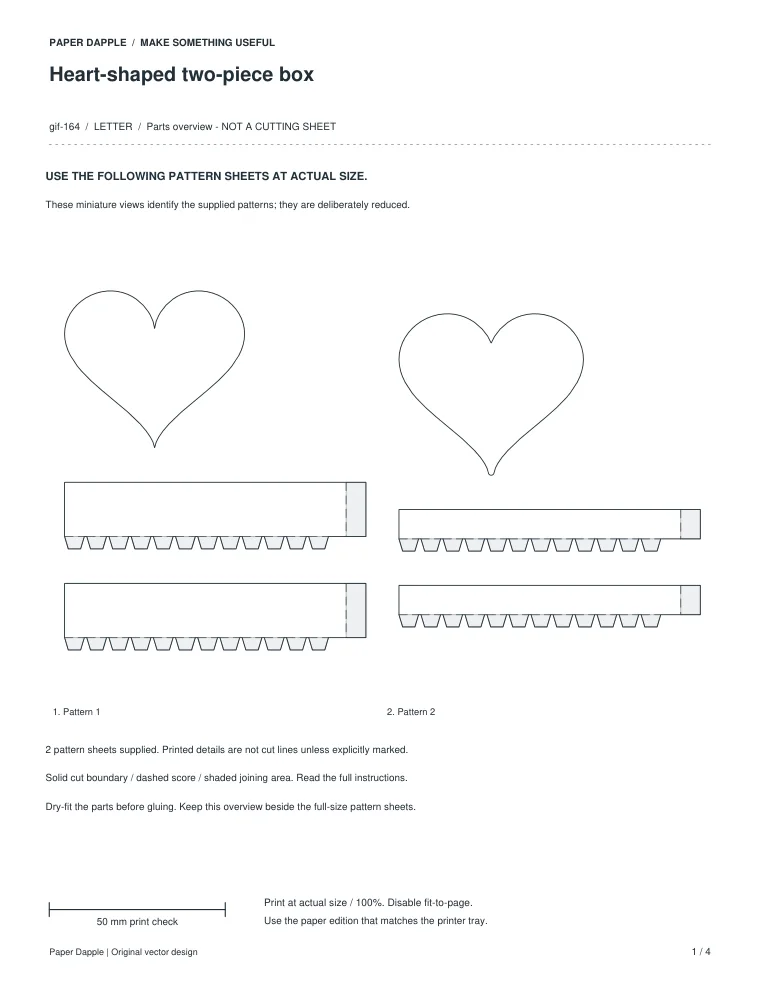

Heart-shaped two-piece box
