Tab-and-slot cube box

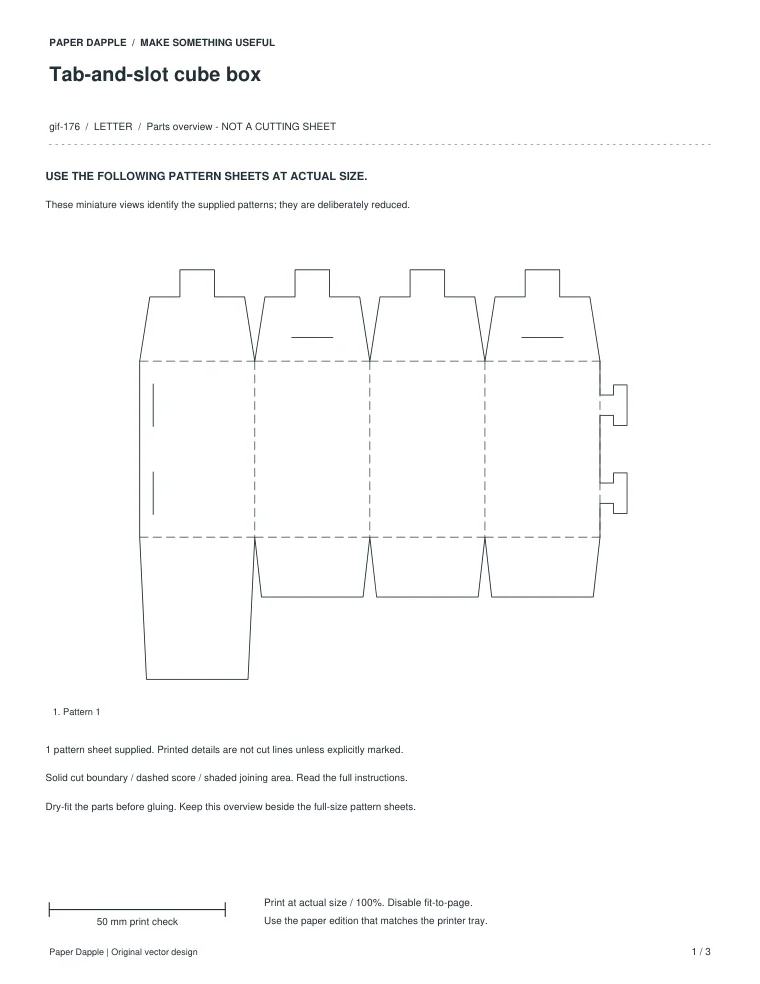

Two 12 mm tongues meet 12.6 mm slots along the side seam of this four-panel cube box.
US Letter · 3 PDF pages · Print PDF
Go to download2 preview images · 3 PDF pages. Open the complete PDF for every page.
Preview of the actual PDF. Open complete PDF
See the page overview
READY TO PRINT
Download this printable.
- Paper
- US Letter
- Pages
- 3
- File
- Print PDF
Free · 7 KB · No account needed
Print the matching Letter/A4 edition at actual size (100%). Measure the 50 mm bar before cutting; trial-fit the parts with your chosen material.
See what is on each page
- Page 1 — Assembly instructions
- Page 2 — slot carton complete boundary
- Page 3 — Assembly instructions
Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.
Save or prepare these pages
Optional: Studio makes a separate page using this design family and paper size. It does not edit this PDF. Preview every sheet before exporting.
Something wrong with the print?
Check the specific problem, then return to this selected PDF.
Back to the selected file · Report a problem with this printable
Tab-and-slot cube box / LETTER
A good fit for your idea?
Letter and A4 preserve the component dimensions. Choose the sheet you will print, not a different object size.
Materials and construction
Plain paper for a first trial, a ruler, scissors and a blunt scoring tool; adult help for internal cuts.
Before making a batch
Measure the 50 mm reference and at least two named panel dimensions.
Assemble an empty plain-paper trial; record closure, seam, clearance and material behavior.
Printing, file details and help
About this file
- Instruction pages
- 2
- Orientation
- Portrait
Four wall panels, each 34 mm wide, with 52 mm height between end folds.
Side seam: two 12 mm tongue heads and two 12.6 mm receiving slits; no glued side flap.
From file to finished page
- Cut the perimeter and score all marked panel and flap hinges.
- Cut the two side-seam receiving slits. Fold the four walls into a square tube and flex each 12 mm tongue head through its matching 12.6 mm slit; the 6 mm neck rests in the slit. Leave this seam unglued.
- Cut the two receiving slits in the bottom flaps. Fold the two slotted flaps inward first, then fold the other two flaps over them and insert each 10.2 mm tip into the opposite 12.24 mm slit.
- Fold the three short top flaps inward first. Fold the long flap across the opening and tuck its plain end inside the opposite wall. Open and close the empty carton without forcing the flap.
Printing and use notes
Nominal drawing dimensions are not a tested usable-capacity, load, mailing, food-contact or archival specification.
Do not place valuable, wet, hot or breakable items in an unreviewed paper prototype.
