Truncated square pyramid paper model
The truncated square pyramid has six faces and seven letter-matched closing pairs.
US Letter · 2 PDF pages · Print PDF
Go to downloadAll 2 pages available to preview

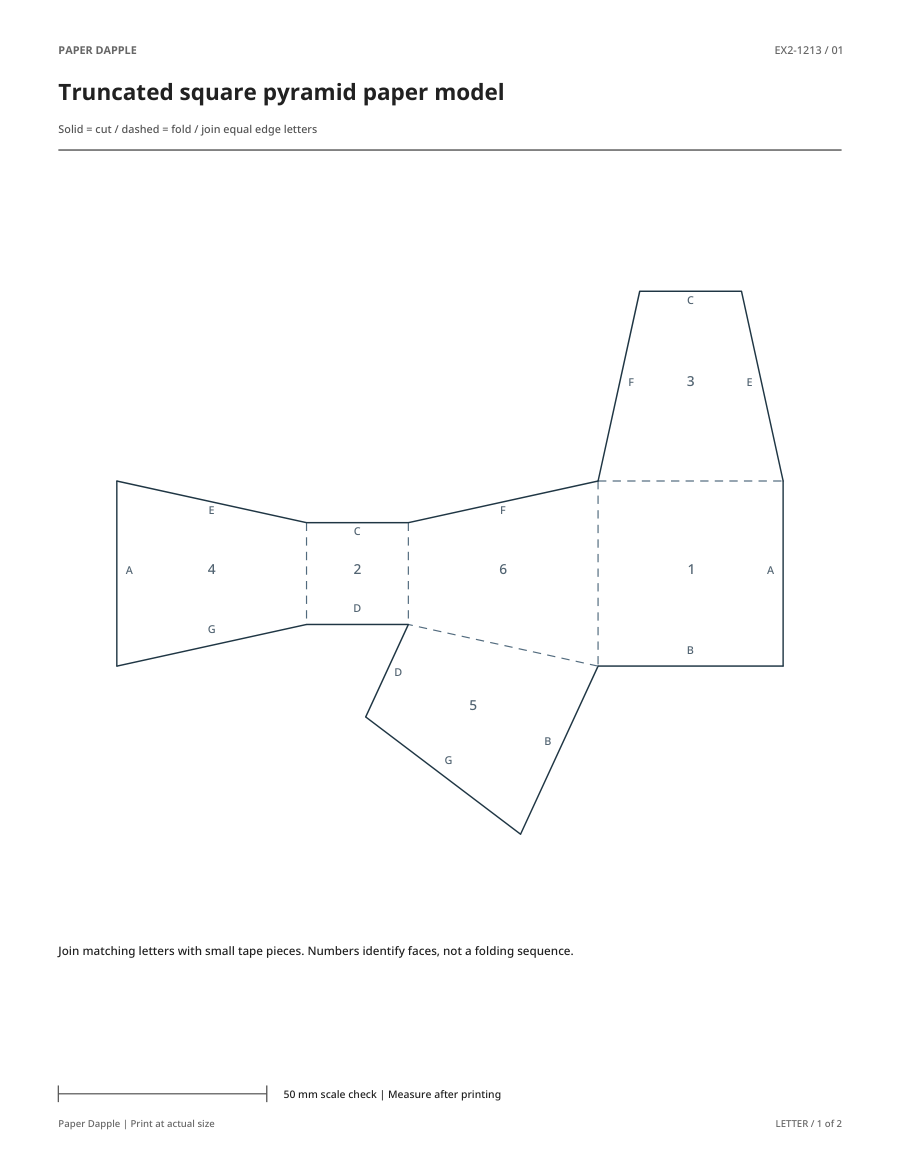

Preview of the actual PDF. Open complete PDF
See the page overview
READY TO PRINT
Download this printable.
- Paper
- US Letter
- Pages
- 2
- File
- Print PDF
Free · 35 KB · No account needed
Print at actual size (100%) on the matching paper. Measure the 50 mm reference line on a physical trial; a screen ruler is not a print check.
See what is on each page
- Page 1 — complete net
- Page 2 — Assembly instructions
Enter these page numbers in your PDF viewer’s print range. Keep any instructions, matching answers and required project pieces.
Save or prepare these pages
Optional: Studio makes a separate page using this design family and paper size. It does not edit this PDF. Preview every sheet before exporting.
Something wrong with the print?
Check the specific problem, then return to this selected PDF.
Back to the selected file · Report a problem with this printable
Truncated square pyramid paper model / LETTER
A good fit for your idea?
Match the joining instructions to the shape. The result is a learning or display model, not tested protective packaging.
Printing, file details and help
About this file
- Instruction pages
- 1
A connected truncated pyramid net with 6 faces and 7 letter-matched closing edge pairs.
From file to finished page
- Choose the paper size loaded in your printer and open the matching PDF.
- Print at actual size (100%) on the matching paper. Measure the 50 mm reference line on a physical trial; a screen ruler is not a print check.
- Cut the continuous outside boundary. Keep all faces connected at the dashed hinges; do not cut the dashed lines.
- Pre-crease every dashed hinge. Keep the printed face numbers on the inside when forming the model.
- Start with one closing pair, such as A to A. Bring the two equally labeled edges together and secure with a small tape piece.
- Continue with the remaining letter pairs, using the face numbers to keep track. Leave the last accessible edge until the other joins are secure.
- This pattern uses tape joins, not glue tabs. Do not stretch or resize a single face; print a new full net if a piece is damaged.
Printing and use notes
This is a paper learning/display model. It is not a fitted, protective, food-contact or load-bearing container.
Paper thickness, actual folding and taped joins have not been physically tested.
